เครื่องดูดสุญญากาศ (Vacuum Machine)
Lift metal plate, steel plate, wood, glass with air
Working principle (หลักการทำงาน)
1m x 2m (adjustable)
Product parameters (พารามิเตอร์ของสินค้า)
| Model | TBD-1P | TBD-2P | TBD-4P | TBD-6P |
|---|---|---|---|---|
| Load (KG) | 150KG | 300KG | 400KG | 600KG |
| Self-respecting (KG) | 40KG | 50KG | 60KG | 70KG |
| Length Dimensions | 0.3M | Optional 1-5M | ||
| Width Dimensions | 0.3M | l 1-1.5M | ||
| Single chuck load (KG) | 150KG or more | 100KG (actual test) load-bearing attainment | ||
| Size of suction cup (mm) | 300mm | 200mm | ||
| Hoisting device | Suitable for use with traffic or suspension of cantilever | |||
| Voltage DC | DC12V (with 2 internal batteries supercharged)a long voyage) | |||
| Continue one’s | Single charge lasts for 3-5 days.plug-in work | |||
| Control system | Absorption and release are all focused on the handrails.be in the middle | |||
| Customizable | Note that your specific process requirements may be appropriate.Customize workpiece size and weight | |||
Applications (การประยุกต์ใช้งาน)

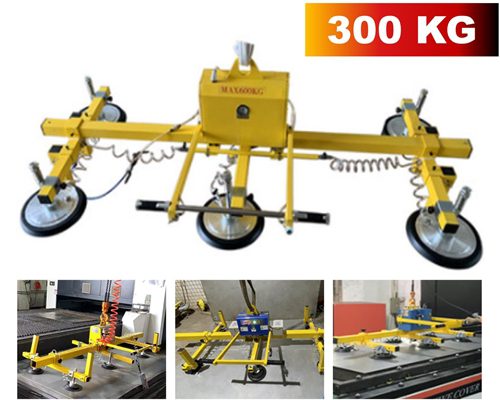

Load product 300KG
Load product 400KG
Load product 600KG
