Chiller Water Cooling

Chiller JL-3000, JL3000, CW-3000, CW3000

Chiller Chiller Water Cooling

Cooling system, cooling system, chiller / industrial water chiller, water chiller for factory

Precise Temperature Control Industrial Cooling System

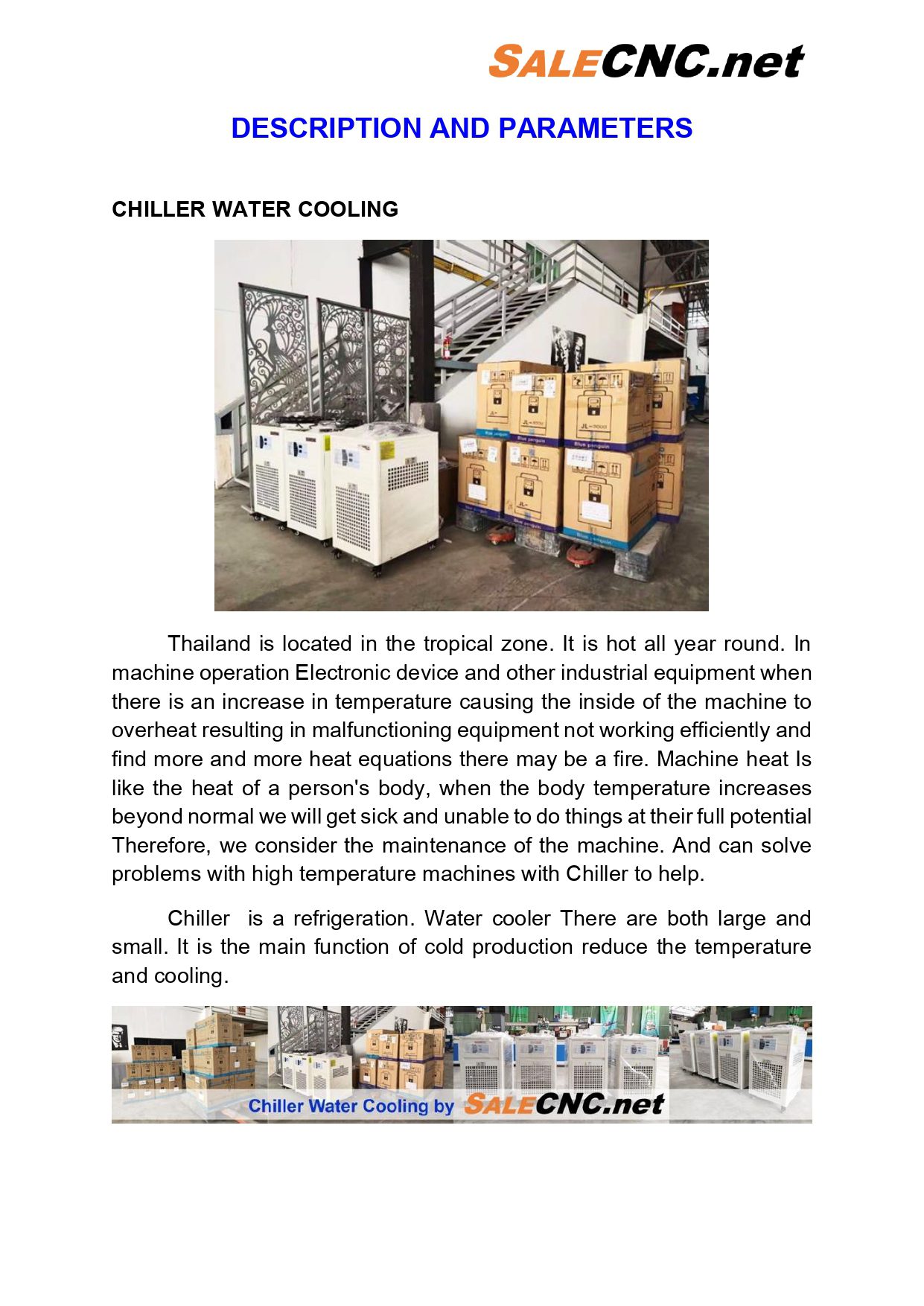

• Thailand is located in a tropical area. The weather is hot all year round. In the use of machinery, electronic equipment and other devices in industrial plants, when the temperature increases, the inside of the machine will overheat, resulting in equipment damage, inefficient operation and if the heat accumulates more and more, it may cause a fire. The heat in the machine is like the heat in a person's body. When our body temperature is higher than normal, we will get sick and will not be able to do things efficiently. Therefore, we take into account the maintenance of the machine and can solve the problem of high temperature machines by: Chiller Be a helper
• Thailand is located in the tropical zone. It is hot all year round. In machine operation Electronic device and other industrial equipment when there is an increase in temperature causing the inside of the machine to overheat resulting in malfunctioning equipment not working efficiently and find more and more heat equations there may be a fire. Machine heat Is like the heat of a person's body, when the body temperature increases beyond normal we will get sick and unable to do things at their full potential Therefore, we consider the maintenance of the machine. And can solve problems with high temperature machines with Chiller to help.

• Chiller It is a cooling machine, a water chiller, both large and small. Its main function is to produce coolness, reduce the temperature and dissipate heat by using water as the main factor in exchanging and transferring coolness from the chiller. Currently, chillers are used in industrial plants to cool machines, maintain machines to last longer and help maintain the efficiency of the machines.
• Chiller  is a refrigeration. Water cooler There are both large and small. It is the main function of cold production reduce the temperature and cooling.

• Use water as the main medium for exchanging and dissipating heat from the cooling machine.
• Chillers are currently used in industrial plants to cool down machines, maintain them for a long time, and help maintain their efficiency.
• For example, closed-loop wells, hydraulic injection molding machines, and CNC machines.
• For example : Closed system pond, Hydraulic injection molding machine, CNC Engraving Cutting CO2, CNC Laser Engraving UV, CNC Router Milling, CNC Fiber Laser and other.

---

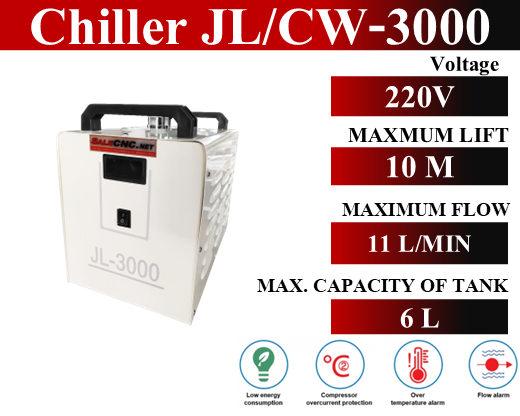

Chiller for sale, model JL-3000

Used for cooling CNC fiber laser machines. Easy to use, makes the CNC fiber laser machines not hot while working.

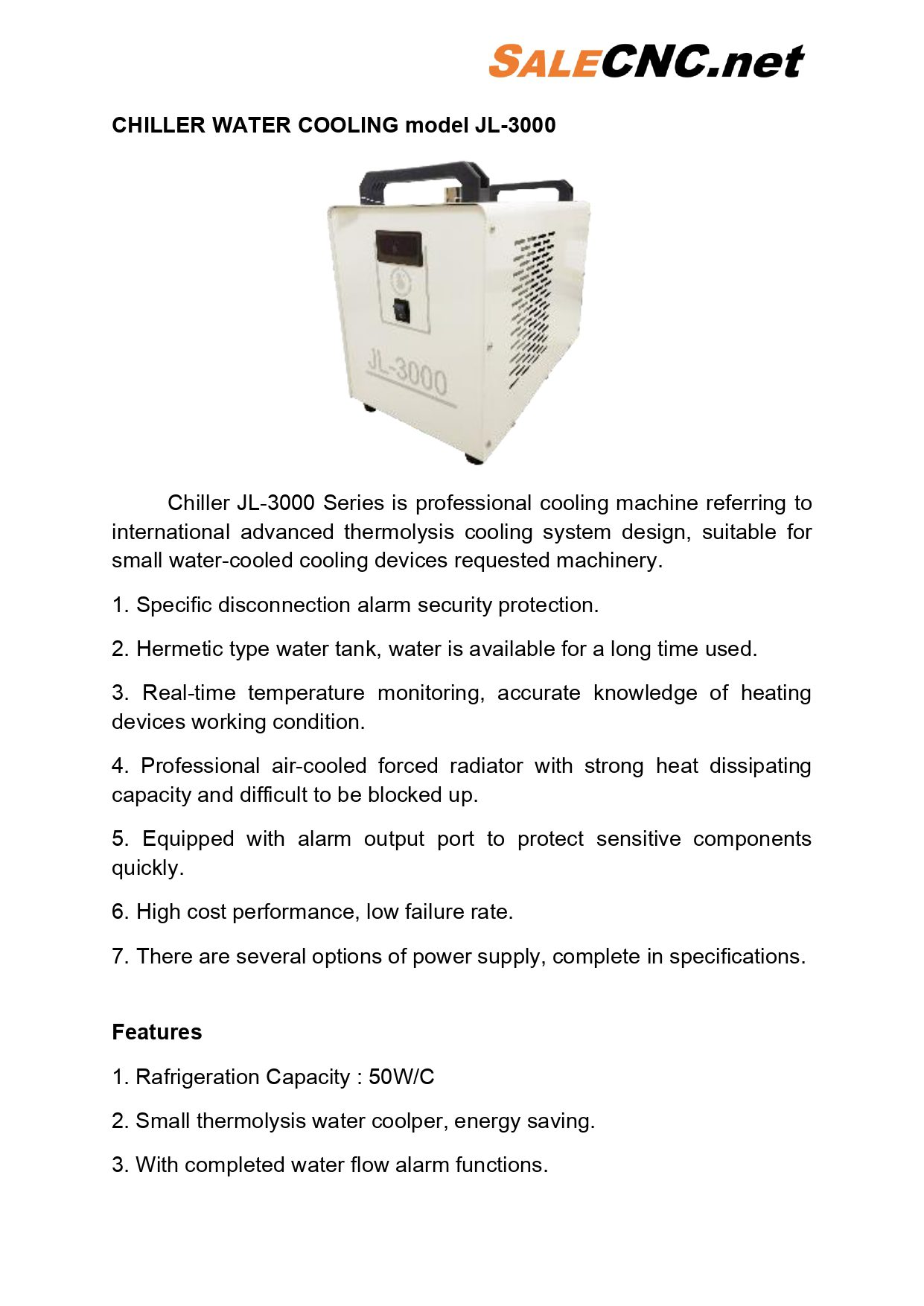

FEATURES

1. Rafrigeration Capacity : 50W/C
2. Small thermolysis water cooler, energy saving.
3. With completed water flow alarm functions.
4. Use a lot for CNC Laser, CNC Fiber Laser, CNC CO2 Laser.
5. The normal state is 25-32 degree Celsius.

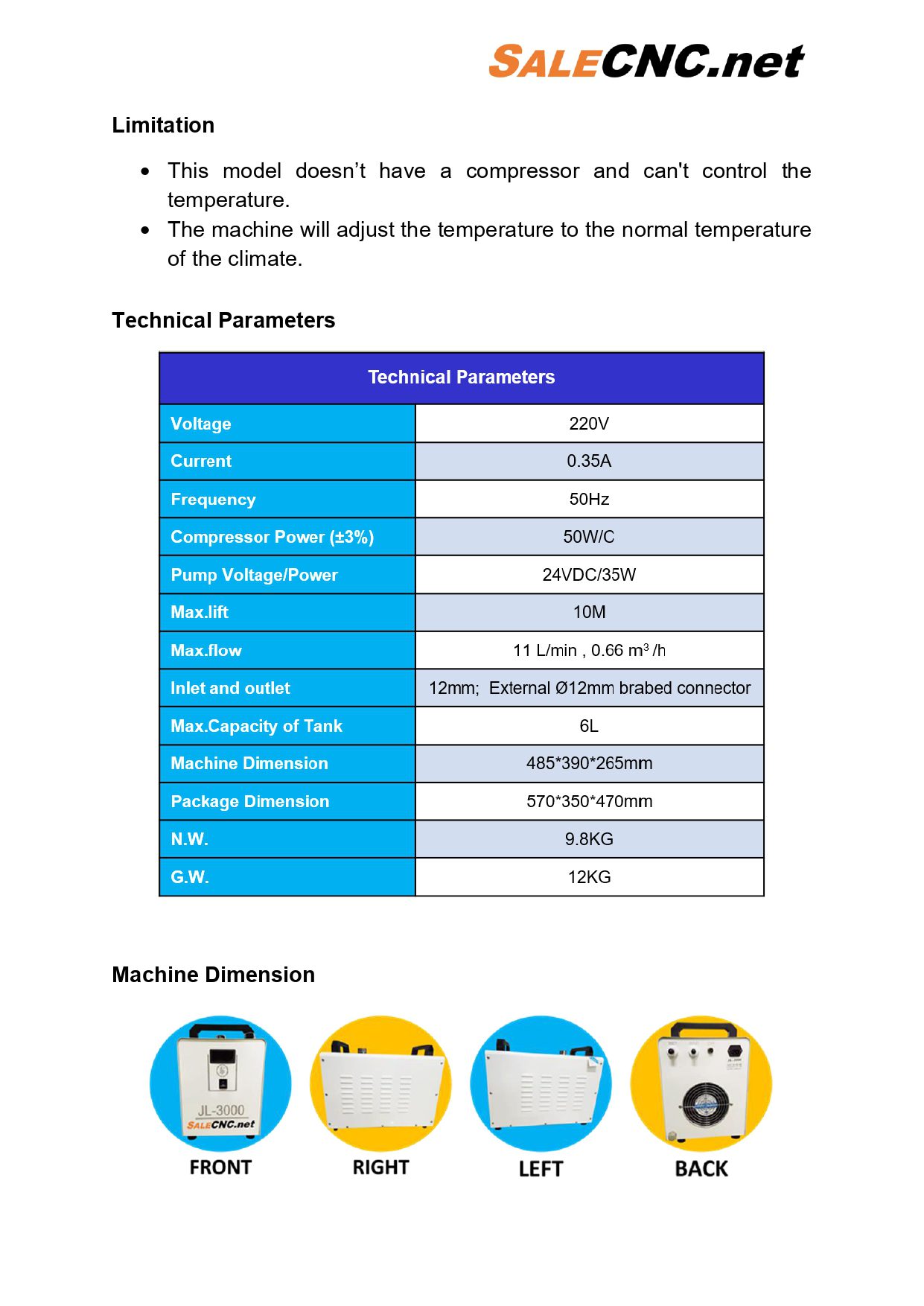

LIMITATION

• This model doesn't have a compressor and can't control the temperature.
• The machine will adjust the temperature to the normal temperature of the climate.



Machine Dimension

✔ Front



✔ Back ✔ Inlet and outlet✔ Ventilation fan✔ Drain hole

Machine Dimension

Machine Components

Technical Parameters

Limitations of Chiller JL/CW-3000

compressor

• JL/CW-3000 : None
• From JL/CW-5000 and above : Yes

Temperature control

• JL/CW-3000 : Temperature control is not possible.
• From JL/CW-5000 and above: Temperature control available

Temperature reduction

• JL/CW-3000: The machine will adjust the temperature to the normal temperature. For example, the normal temperature is 32 degrees, the machine will work to adjust the temperature down to 32 degrees.
• From JL/CW-5000 and above: Temperature can be adjusted. The machine will operate only when the temperature drops to the set temperature.

Compressor

• JL/CW-3000 : Don't have
• From model JL/CW-5000 up : Have

Temperature control

• JL/CW-3000 : Can't control the temperature.
• From model JL/CW-5000 and above : Temperature control

Reduction of temperature

• JL/CW-3000 : The unit will adjust the temperature to the normal temperature. For example, the normal temperature is 32 degrees. The machine will adjust the temperature down to 32 degrees.
• From model JL/CW-5000 up : can adjust the temperature The machine will work only when the temperature drops to the set temperature.



Download Chiller JL-3000 user manual  Click here



Comparison of JL3000 and JL5000 chillers





---

Compare all models of water chillers

Chiller Water Cooling Model JL







---

Working between CO2 Laser Tube and Chiller



---

Additional options: Heat Exchanger

Heat Exchanger  Connect to the Chiller and immerse in water to further reduce the water temperature.

The price is only 3,000 baht!!



Installation of Heat Exchanger with chiller

Heat Exchanger Accessories for chillers to further reduce water temperature | SALECNC.net



---

Chiller Water Cooling VS Cooling Tower

Cooling Tower Used in industry Hydraulic Injection Molding Machine Mostly because cooling towers have quite a few disadvantages. The machine is large, it is an open system that is difficult to maintain, dust and sediment are easily able to enter the machine, which negatively affects the operation and shortens the lifespan.

Therefore, the manufacturing industry tends to turn to use Chiller (Chiller Water Cooling) The machine is small, compact, saves working space, is a closed system, prevents dust and sediment well, and has a long service life.





Cooling Tower	Chiller Water Cooling
❌ Open system ❌ Open system operation	✅ Closed system ✅ Closed-system operation
❌ Since the machine is an open system Causing dust and other sediments to enter the machine easily. It will clog, rust and affect the usability of the machine. ❌ Since it works as an open system, dust, debris, etc. are very likely to enter the machine, causing blockage, rust, and definitely affecting the machine's operation.	✅ The machine is a closed system. Prevents dust and other debris from entering the machine. Changing the water is easy. ✅ With a closed system operation, it prevents dust and sediment from entering the machine. Changing water is also convenient.
❌ Cleaning made difficult. ❌ Cleaning the machine is difficult.	✅ Cleaning made easy. ✅ Cleaning the machine is easy.
❌ The machine is large, takes up quite a lot of work space. ❌ The machine is large and requires a lot of working space.	✅ The machine is small, save working space. ✅ The machine is small in size, saving a lot of working space.
❌ Short term ❌ Short lifespan	✅ Long term ✅ Long service life
❌ Cheap… but not worth it ! ❌ Cheap but not worth the maintenance, repair and short lifespan, wasting budget in the future.	✅ Expensive… but worth it ✅ More expensive but worth it, easy to maintain and helps reduce costs well.

discount!

World-class quality cnc, cheapest in Thailand

LINE

CUSTOM MADE PRODUCTS
Custom Made CNC
Customize the CNC that suits you

Product List
3D carving

cnc router 2 heads

Robot picks up items and puts them into the machine

5 axis cnc

Cable Drag Chain with cover, size 35×75 mm R75
฿1,040 ฿590
There are 64 products in stock.

1
Add to Cart
Product Code: DRAG-035075 Category: P03-Cable Drag Chain, Uncategorized, Machinery Equipment (Parts)
More details
Plastic snake track for storing wires, best price in Thailand

👉🏻Product size
✅ Inside size(H*W): 35*75 mm
✅ Outside size(H*W): 55*100 mm
✅ Curve radius size R: R75 mm
✅ Height size H: 275 mm
👉🏻Product specifications
✅ Product options Condition: NEW
✅ Snake bone cable channel with cover
✅ Material: Nylon PA66 (flame retardant)
✅ Color: Black
✅ Approval certification standards: ISO, CE
✅ Heat resistance Temperature Resistance: -40°C to 130°C
👉🏻Features of SaleCNC.net's plastic snake rails
✅ It looks like a cable chain consisting of multiple joints that can be disassembled freely.
✅ Suitable for electrical wires, oil pipes, air pipes, water pipes, etc.
✅ Supports the storage of wires neatly inside the track. When objects move, the wires and track will move accordingly, preventing the wires from snagging or falling out.
✅ Made from high quality materials, highly durable, lower price than the market.
👉🏻Read before buying
! The product has many sizes. Please check carefully before ordering.
! In the event that the customer orders the wrong size, the store reserves the right to refund in all cases.
! Choose different sizes from the size chart.
! The size stated in the product name is the inside size, not the outside size.
! Price per meter
Inside snake track 35*75 mm. Snake track for threading wires. Cable Drag Chain with cover.
Characteristics of the snake rail

How to connect a snake track with a cover, a snake track for carrying wires, a snake track for storing wires

Measuring the size of cable drag chain
