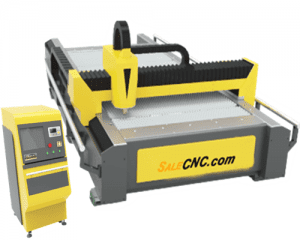

CNC z Fiber laser cutting machine model FB16-1530-1000W

Sell CNC Fiber laser cutting machine FB16-1530-1000W



Detailed parameters

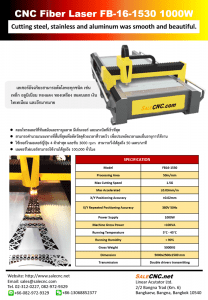

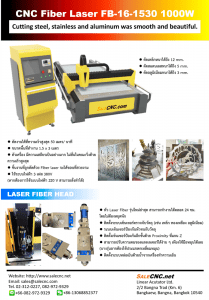

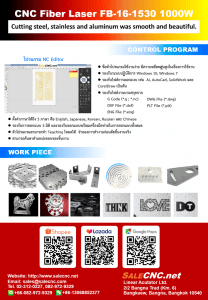

Download Brochures – Click here click





Materials that can be cut:

Machine specifications:



ความสามารถ :

• Cutting work at a maximum speed of 40 meters/minute
• Can cut steel up to 12 mm thick.
• Can cut stainless steel up to 5 mm thick.
• Can cut aluminum up to 3 mm thick.
• Working area size 1.5 x 3 meters
• The machine is very stable and does not shake while running at maximum speed. “Sample video”
• Workpieces cut with a Fiber laser will have very beautiful edges.
• Use a 3-phase 380 V electrical system.
• If you want to use a 220 V electrical system, it can be ordered.



โปรแกรมควบคุม :

• NC Editor program name
• The program is easy to use and has high flexibility in usage.
• Supports Windows 10, Windows 7 operating systems
• Support design files AI, AutoCad, SolidWork, CorelDraw, etc.
• Supports file extensions from
  • G Code (*.g ; *.nc)
  • DXF File (*.dxf)
  • DWG File (*.dwg)
  • PLT File (*.plt)
  • ENG File (*.eng)
• Set up to 5 languages
  • English
  • Japanese
  • Korean
  • Russian
  • Chinese
• Supports design with all design tools
• Support 3D design
• The program can do Teaching mode.
• Simulate the work before cutting the actual workpiece.
• Find the edge location of the workpiece



คุณภาพของ Controller :

• The Controller was designed, developed and researched by professors from MIT. Massachusetts Institute of Technology From the United States
• Supports working in high temperature environments
• Support wireless control
• Use the latest modern architecture
• The latest technology supports Internet connection to update firmware.

อุปกรณ์ควบคุมแบบไร้สาย Remote Control :

• Used to control laser machines with wireless signals.
• Use to control instead of commanding through the monitor screen.
• Use specific receive-transmit signal coding to prevent interference from outside the steel laser cutting machine structure.

Maximum Specification Cutting mm :



Examples of the machine's work:







Laser vs Plasma



• The power consumption of fiber laser is much lower than plasma. You can use only 20% plasma. You can consider 1000W 380V laser which only uses 1000W/380V=2.6A compared to 60A 380V for plasma source. Many plasma sources use 100A compared to 1000W(2.6A). You will be amazed at the electricity you will save when you use 6A laser compared to 100A. That is 38 times your electricity bill. For example you pay 1000$ per month for electricity when you use plasma then you will pay around 1000/38=26$ per month. It is very economical.
• Tips Plasma cutting for one sheet of metal may use many Tips, but fiber laser can use many sheets of metal cutting for only one laser head tip. Because plasma uses high pressure, high volume of air to cut, so that the plasma electrode can burn quickly. You need to change once when you change the setting time and the time the machine will stop working. Machine time is the cost of the machine and the cost of the workers.
• The cutting speed of laser is very high working speed. The cutting time of fiber laser and plasma may be the same, but the laser can go much faster, may be 10 times faster. Because the structure of fiber laser, the machine has very low gravity, the column is very close to the table, so the machine can work at very high speed. Unlike plasma machine, the machine is very high because the torch is high. Then the column must be made very high, so the structure is high, so the running of the machine is not fast, or the machine will shake.
• Fiber laser has much better sensor head than plasma because it has less radiation. Some plasma when photographing other electrical appliances may be dark because of the high radiation of plasma. CNC fiber laser is the opposite. It has less radiation and is more stable.

W	Steel	Stainless	Aluminum	Copper
500	4	4	2	2
1,000	12	6	3	3
2,000	20	10	8	8
3,000	25	12	8	8
4,000	25	14	10	10
6,000	25	20	16	16
8,000	25	25	18	18
10,000	40	40	20	20
12,000	45	50	22	22
15,000	50	70	25	25
20,000	70	110	65	35
				Unit: mm



example : Cut the clock
